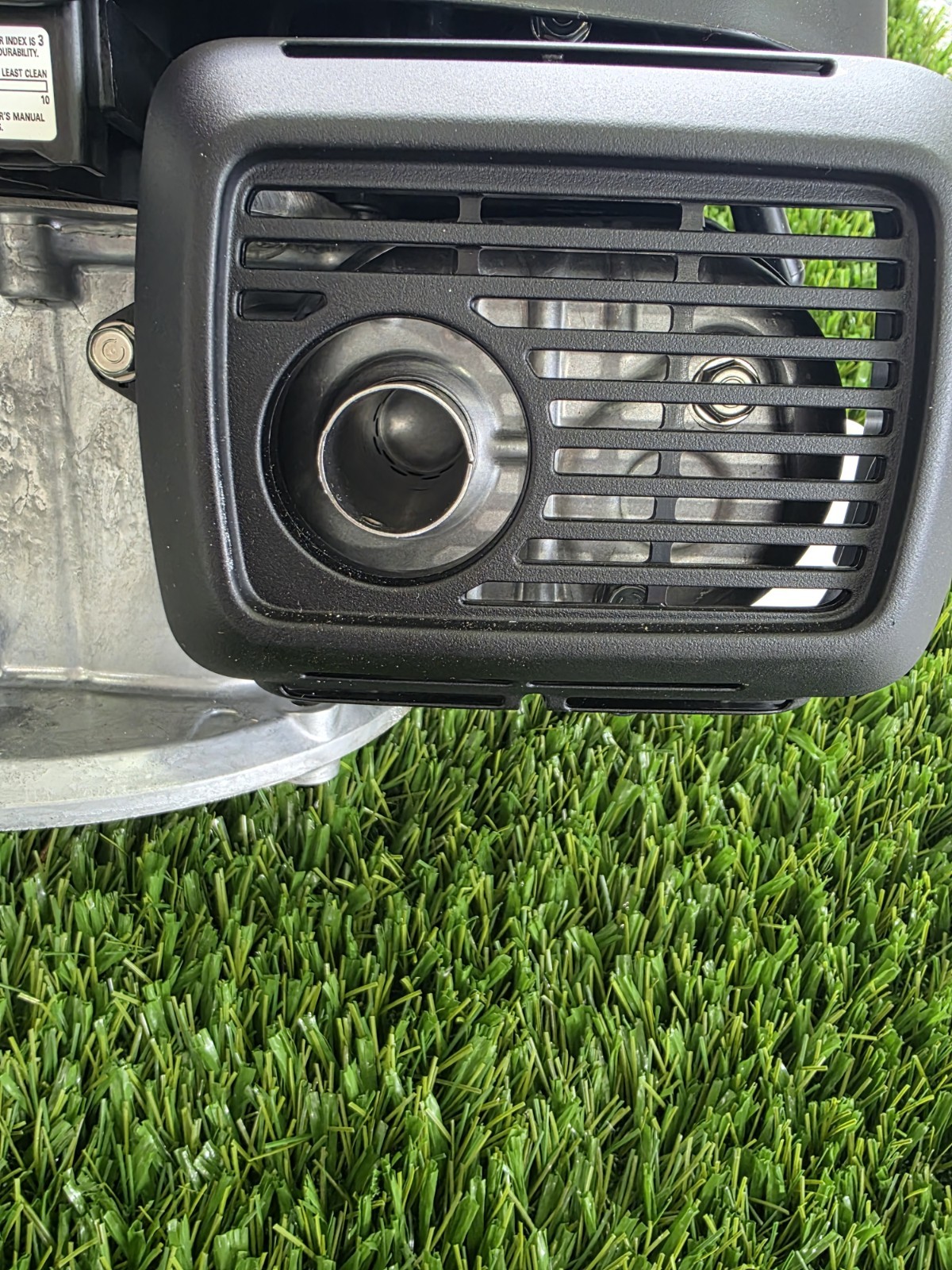

NEW HONDA 4 STROKE GCV 170 ENGINE , PRESSURE WASHER , AND LAWN MOWER

( ALL ENGINES ARE NEW, BUT THEY DO NOT COME IN THEIR ORIGINAL BOX. IF YOU HAVE ANY QUESTIONS, PLEASE FEEL FREE TO ASK US. WE ARE HERE TO HELP YOU.)

The all-new Honda GCV170 pressure washer engine, a powerful addition to the Honda GC Series, is designed specifically for premium, residential pressure washer applications. The GCV170 delivers more power and more torque as compared to the GCV160 engine it replaces. Innovative Honda design features, including an improved combustion chamber shape, advanced auto choke design, integrated Fuel Off position, and a larger fuel tank opening for easier fueling, make the GCV170 engine convenient to use and operate. The new engine is more streamlined and more compact than other engines in the same class, while the configuration of the Honda GCV170 incorporates the CycloFlow™ design, which strengthens turbulence in the cylinder and provides more stable combustion. The result is greater resistance to lower quality fuel and ease of starting, along with a smoother idle..

Engine Model

GCV170

Engine Type

Air-cooled 4-stroke single cylinder gasoline engine (OHV)

Bore x Stroke (mm)

60 x 59

Total Displacement (cm3)

166

Maximum Power Output* (hp /rpm)

4.8 / 3,600

Maximum Torque (lb ft /rpm)

8.2/ 2,500

Compression Ratio

8.0:1

Carburetor

Horizontal type butterfly valve

Ignition System

Transistorized magneto

Starting System

Recoil

Speed Control System

Mechanical

Choke Type

Automatic

Lubrication System

Forced spray

Spark Plug

NGK : BPR5ES

Governor System

Centrifugal flyweight type

Air Cleaner

Dry (paper filter)

Length x Width x Height** (inches)

16.34 x 12.99 x 13.11

Engine Oil Reserve Capacity (qt)

0.42

Fuel Tank Capacity (gal)

0.24

Fuel

Automotive grade unleaded gasoline

Dry Weight (lbs.)

22.3
